ggplot2覚書⑦ theme詳細 facet

引き続き「Rグラフィッククックブック」。

過去記事は以下。

ggplot2覚書① 棒グラフ - まずは蝋の翼から。

ggplot2覚書② 散布図 - まずは蝋の翼から。

ggplot2覚書③ 注釈(解釈補助) - まずは蝋の翼から。

ggplot2覚書④ 軸について - まずは蝋の翼から。

ggplot2覚書⑤ 体裁(theme、テキストgeom)に関しての大枠 - まずは蝋の翼から。

ggplot2覚書⑥ theme詳細 凡例の設定 - まずは蝋の翼から。

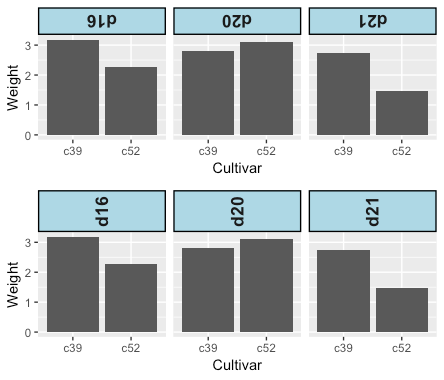

facetラベルとヘッダの体裁

themeを用いて体裁を整える。
stripがfacetに対して。strip.text でfacetのテキスト部分、strip.backgroundでfacetの背景(ヘッダの背景)についてとなる。

なお、facet_gridにおいて、ラベルをデフォルトと逆の位置(xは上部→下部、yは左部→右部)にしたい場合はswichで指定する(両方に場合はboth)。

library(gcookbook) # データセットの読み込み
library(patchwork)

g1 <- ggplot(cabbage_exp, aes(x=Cultivar, y=Weight)) +
  geom_bar(stat="identity") +
  facet_grid(. ~ Date) +
  theme(strip.text.x = element_text(face="bold", size=rel(1.5), angle = 180),
        strip.background = element_rect(fill="lightblue", colour="black", size=1))

g2 <- ggplot(cabbage_exp, aes(x=Cultivar, y=Weight)) +
  geom_bar(stat="identity") +
  facet_grid(. ~ Date, switch = "x") +
  theme(strip.text.x = element_text(face="bold", size=rel(1.5), angle = 90),
        strip.background = element_rect(fill="lightblue", colour="black", size=1))

g1 / g2

f:id:chito_ng:20190223223552p:plain

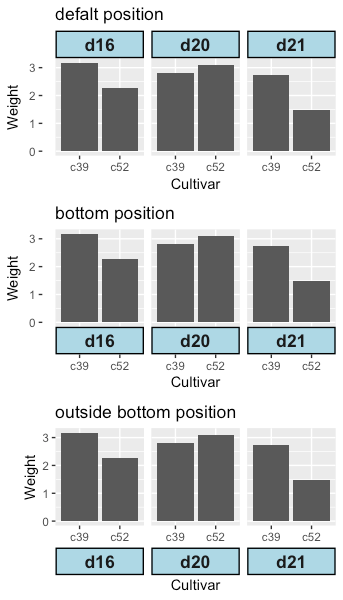

ラベルを目盛の外にしたい場合はstrip.placement に "outside"を指定する。

library(gcookbook) # データセットの読み込み
library(patchwork)

g1 <-
  ggplot(cabbage_exp, aes(x=Cultivar, y=Weight)) +
  geom_bar(stat="identity") +
  facet_grid(. ~ Date) +
  theme(strip.text.x = element_text(face="bold", size=rel(1.5)),
        strip.background = element_rect(fill="lightblue", colour="black", size=1)) +
  labs(title = "defalt position")

g2 <-
  ggplot(cabbage_exp, aes(x=Cultivar, y=Weight)) +
  geom_bar(stat="identity") +
  facet_grid(. ~ Date, switch = "x") +
  theme(strip.text.x = element_text(face="bold", size=rel(1.5)),
        strip.background = element_rect(fill="lightblue", colour="black", size=1))+
  labs(title = "bottom position")

g3 <-
ggplot(cabbage_exp, aes(x=Cultivar, y=Weight)) +
  geom_bar(stat="identity") +
  facet_grid(. ~ Date, switch = "x") +
  theme(strip.text.x = element_text(face="bold", size=rel(1.5)),
        strip.background = element_rect(fill="lightblue", colour="black", size=1),
        strip.placement = "outside") +
  labs(title = "outside bottom position")

g1 / g2 / g3

f:id:chito_ng:20190225200518p:plain
