StanのMCMC結果&パラメータ結果を可視化する① bayesplotとShinyStan

背景

最近rstan経由でStanを使ってる。rstanを用いた結果(収束診断とか事後確率分布とか)はそのままのデータでは可視化をするのが面倒。
可視化するのに便利なパッケージはないか調べてみると、ggmcmc とか bayesplot とか shinystan とか tidybayes とか色々ある模様。

友人に使い分けを聞いたりした感じだと、

  • MCMCがうまくいってるかとか見るならbayesplotshinystan
  • パラメータの事後分布(サンプリング結果)はtidybayes

という使い分けがいいそうな。 とりあえずそれぞれで試してみる。

準備

データは以下のサイトと同様のものを使用する。

Introduction to bayesplot (mcmc_ series)

bayesplotでMCMC結果を見る

内容も上記サイトをトレースする。

概要

bayesplotではrstanの標準関数より便利な形でggplotオブジェクトとして結果を返してくれる。

bayesplotパッケージでは、大きく二つの関数系に分かれているとのこと - 1. mcmc xxx(収束や事後分布を確認するための関数群) - 2. ppc xxx(事後予測チェックを行うのに便利な関数群)

パラメータ推定が収束しているか

\hat{R} の確認

rhat(fit)で書くパラメータの \hat{R} 結果を出力できる。

rhat(fit)

# =>
       mu       tau    eta[1]    eta[2]    eta[3]    eta[4]    eta[5]    eta[6]    eta[7]
1.0112444 1.0086249 1.0002212 1.0000860 1.0018156 0.9996789 1.0001951 0.9985509 1.0004175
   eta[8]  theta[1]  theta[2]  theta[3]  theta[4]  theta[5]  theta[6]  theta[7]  theta[8]
1.0006213 1.0041166 0.9996360 1.0007257 1.0001193 1.0005308 1.0009002 1.0019892 1.0022765
     lp__
1.0126542

このデータをmcmc_rhat_hist()に渡すといい感じにrhatを出力してくれる。
\hat{R} は一般的に1.1以下なら良いため、その基準に基づいて凡例が色分けされている。

mcmc_rhat_hist(rhat(fit))

f:id:chito_ng:20190518205209p:plain

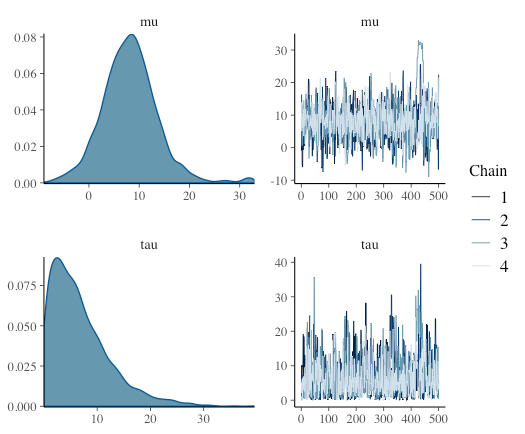

traceplotの確認

一度stanの結果をarrayにしてからmcmc_trace()にわたす。mcmc_combo()に渡した場合は事後分布と共に表示してくれる。

samples <- as.array(fit)
mcmc_trace(samples, pars = "mu")  ## n_warmupでwarmup区間指定可能

## 事後分布と同時(パラメータ多いと重い)
mcmc_combo(samples, pars = c("mu","tau"))

f:id:chito_ng:20190518205934p:plain

パラメータ推定が安定しているか

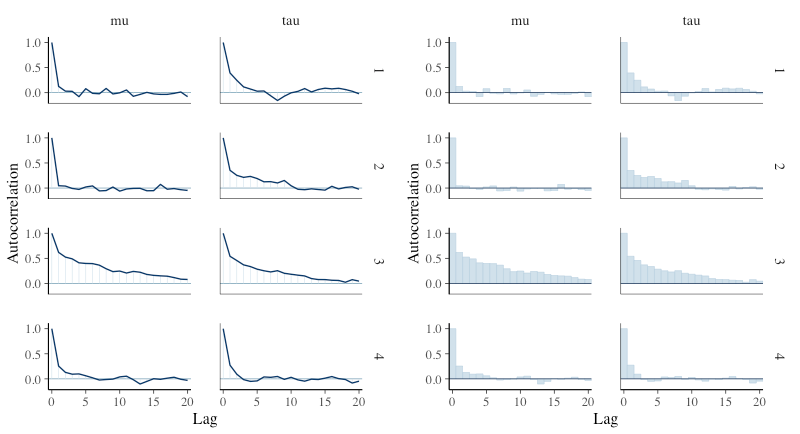

自己相関の確認

先ほどと同様に、配列型を関数に渡す。mcmc_acf()で折れ線、mcmc_acf_bar()で棒グラフとして、lagとの相関が(自己相関)が見れる。

library(patchwork)

## 折れ線表記
g1 = mcmc_acf(samples, pars = c("mu", "tau"))
## 棒グラフ表記
g2 = mcmc_acf_bar(samples, pars = c("mu", "tau"))

g1 | g2

f:id:chito_ng:20190518210315p:plain

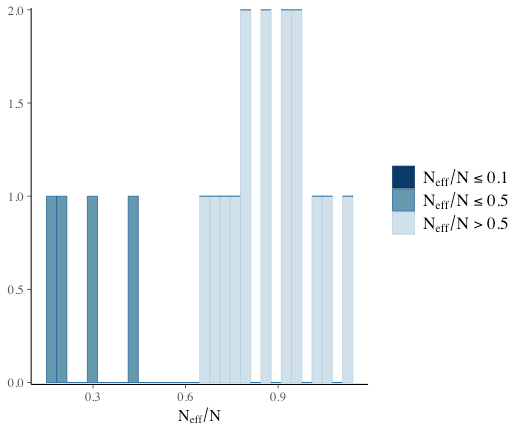

実行有効サンプルサイズ(ESS(n_eff))

0.1以下だと自己相関が高く、MCMCが上手くいってないとのこと(あんまよく理解してない
neff_ratio()でn_eff値を数値で、mcmc_neff()でn_eff値を図として確認できる。

# 値
neff_ratio(fit)
# 図で出力
mcmc_neff_hist(neff_ratio(fit))

f:id:chito_ng:20190518211808p:plain

事後分布の確認

冒頭で書いたように、tidybayesの方が良さげだが一応。

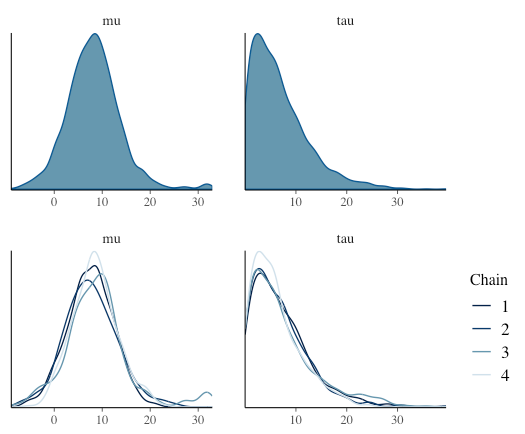

確率密度

# chain合算
g3 = mcmc_dens(samples, pars = c("mu", "tau"))

# chain毎
g4 = mcmc_dens_overlay(samples, pars = c("mu", "tau"))

g3 / g4

f:id:chito_ng:20190518212417p:plain

まとめて1グラフに表示したい場合。上記のmcmc_dens()でもひとつといえばひとつなので好みか?
ただ、こっちのmcmc_areas()の場合は正規表現が使えるようになったり、信頼区間出たりする。

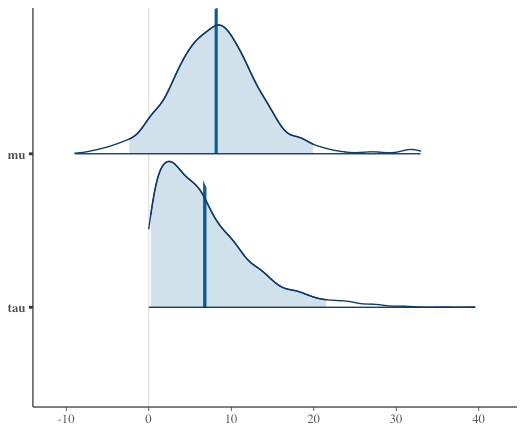

mcmc_areas(samples, c("mu", "tau"), prob = 0.95, prob_outer = 1, point_est = "mean")

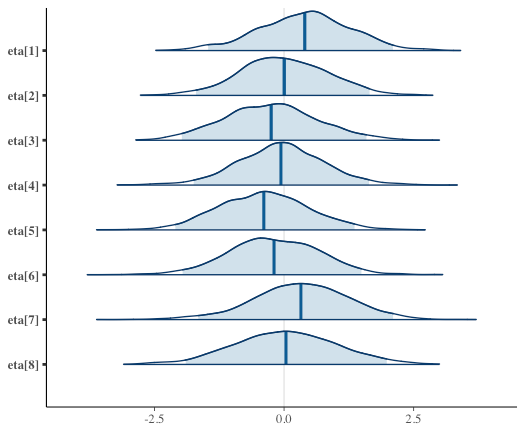

mcmc_areas(samples, regex_pars = "^eta\\[", prob = 0.95, prob_outer = 1, point_est = "mean")

f:id:chito_ng:20190518212824p:plain

f:id:chito_ng:20190518212735p:plain

mcmc_areas_data()で値として出力できる。

mcmc_areas_data(samples, regex_pars = "^eta\\[", prob = 0.95, prob_outer = 1,
                point_est = "mean")

# A tibble: 16,534 x 5
   parameter interval interval_width     x density
   <fct>     <chr>             <dbl> <dbl>   <dbl>
 1 eta[1]    inner              0.95 -1.47  0.0709
 2 eta[1]    inner              0.95 -1.46  0.0711
 3 eta[1]    inner              0.95 -1.46  0.0713
 4 eta[1]    inner              0.95 -1.45  0.0716
 5 eta[1]    inner              0.95 -1.45  0.0718
 6 eta[1]    inner              0.95 -1.45  0.0720
 7 eta[1]    inner              0.95 -1.44  0.0722
 8 eta[1]    inner              0.95 -1.44  0.0723
 9 eta[1]    inner              0.95 -1.44  0.0725
10 eta[1]    inner              0.95 -1.43  0.0727
# … with 16,524 more rows

ヒストグラム

chain合算

mcmc_hist(samples, pars = c("mu", "tau"))

f:id:chito_ng:20190518220034p:plain

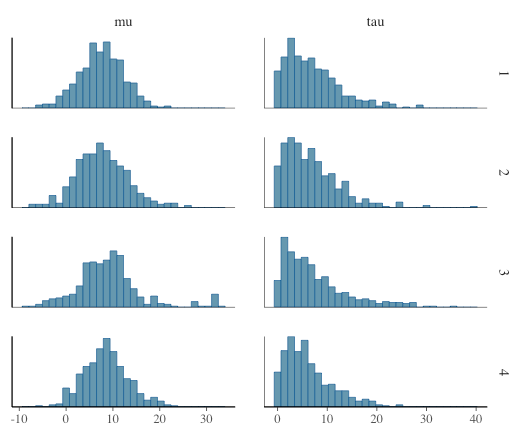

chain毎

mcmc_hist_by_chain(samples, pars = c("mu", "tau"))

f:id:chito_ng:20190518220153p:plain

散布図

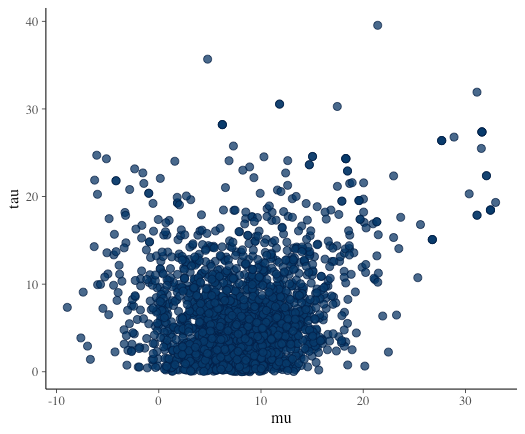

mcmc_scatter(samples, pars = c("mu", "tau"))

f:id:chito_ng:20190518220359p:plain

散布図とヒストグラムまとめて

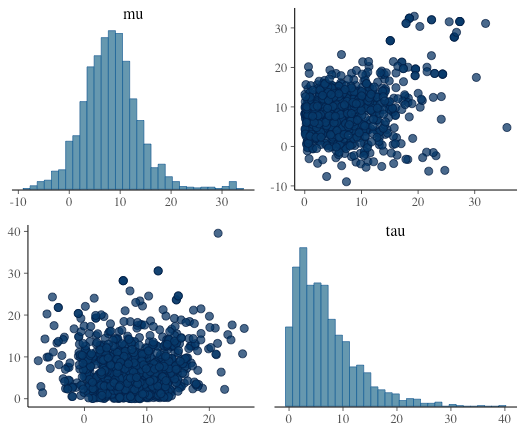

mcmc_pairs(samples, pars = c("mu", "tau"), diag_fun = c("hist"))

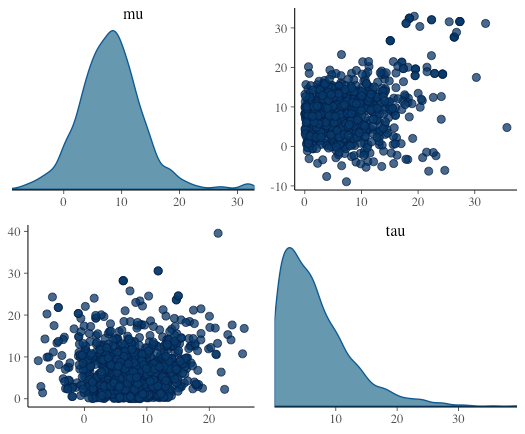

mcmc_pairs(samples, pars = c("mu", "tau"), diag_fun = c("dens"))

f:id:chito_ng:20190518220624p:plain

f:id:chito_ng:20190518220636p:plain

ShinyStanでMCMC結果を見る

ShinyStanは名前通りShinyで動いている。

要はbayesplotとかで出力していることを、まとめてShinyアプリ上で勝手にplotしてくれるという優れもの。 rstanの結果のほかに、rstanarmbrmsのような、ベイズ系パッケージに対しても使えるらしい。

Getting Started • shinystan

グラフ画像を使ってなにかしたり、より自分好みの画像を作るとかじゃない限りは基本的にShinyStanを使えばいい気がする。

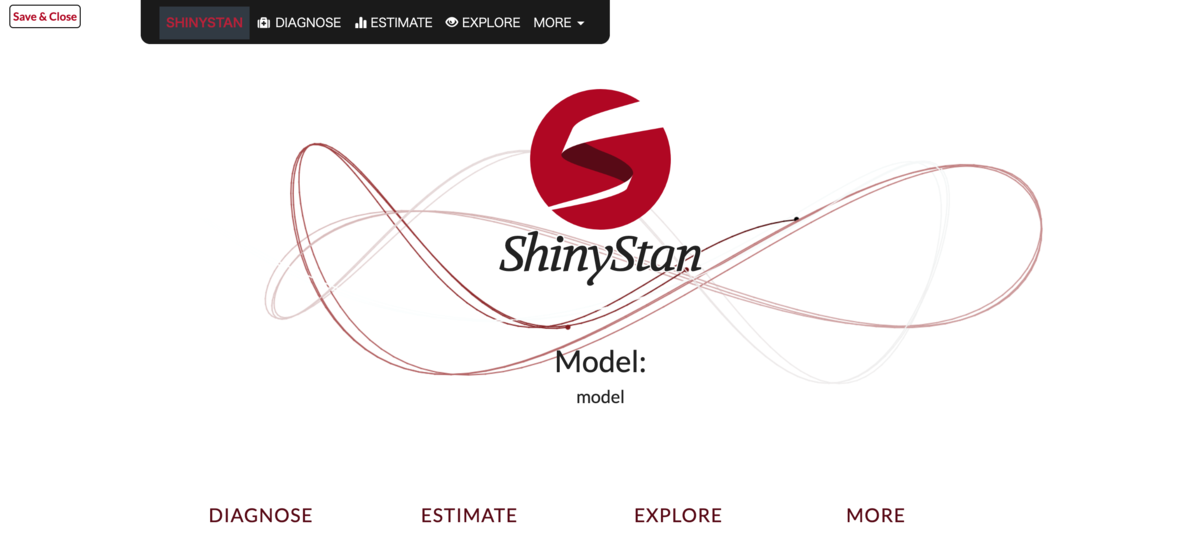

以下のように、作成したモデルに`launch_shinystan()'関数を適用すると起動する。

library(shinystan)

my_sso = launch_shinystan(fit)

f:id:chito_ng:20190519002248p:plain

メニューはそれぞれ

  • DIAGNOSE:MCMCの収束診断
  • ESTIMATE:パラメータの推定結果
  • EXPLORE:グラフ
  • MORE:その他(コードや単語解説など)

となっている。
少し表示内容が変わっているが内容の詳細は以下のP37あたりを参照するとよい。

www.slideshare.net

tidybayes

長くなったのでtidybayesは次の記事で。
